Choosing the right protective TV case is the most critical step in designing an outdoor entertainment space or a commercial digital signage network. A mismatched cabinet not only compromises the aesthetic appeal of your setup but can also disrupt internal airflow, leading to thermal management issues.
Outvion offers a comprehensive, globally scalable range of outdoor TV enclosures accommodating screens from compact 28-inch monitors to massive 85-inch commercial displays (with custom project sizes beyond). Engineered using premium Covestro polycarbonate, equipped with ventilation matched to the enclosure size and installation environment, and featuring select models with integrated LED ambient lighting, this guide will help you identify the precise cabinet size for your deployment.
Whether you are a homeowner outfitting a backyard patio, a facility manager upgrading a sports bar, or a B2B integrator deploying a digital signage network, matching your display size to the correct protective box is paramount. To assist in your planning phase, we have categorized our entire fleet below.
Quick Selector: How to Choose the Right Outvion Size
- For 3–6 ft viewing and menu/wayfinding: 28–32″ / 40–43″
- For patios, bars, and general entertainment: 50–55″
- For primary viewing zones and larger social spaces: 60–65″ / 70–75″
- For stadium-scale / large public zones: 80–85″ and custom 98″+
The Outvion Enclosure Fleet & Feature Matrix
| Enclosure Size | Primary Application Zone | Ventilation Configuration | Integrated LED Ambient Light |
| 28-32″ | Drive-thrus, Clinical Corridors | 2-Fan System | No |
| 40-43″ | Small Patios, Poolside | 2-Fan System | No |
| 50-55″ | Outdoor Kitchens, VIP Cabanas | 2-Fan System | Yes (Standard) |
| 60-65″ | Sports Bars, Home Theaters | 2-Fan System | Yes (Standard) |
| 70-75″ | Amphitheaters, Luxury Estates | 4-Fan High-Volume System | Yes (Standard) |
| 80-85″ | Stadiums, Transit Concourses | 4-Fan High-Volume System | No |
Last Updated: April 7th 2026 | Estimated Reading Time: 9 minutes
By Smith Chen, Outdoor TV Enclosure Engineer at Outvion.

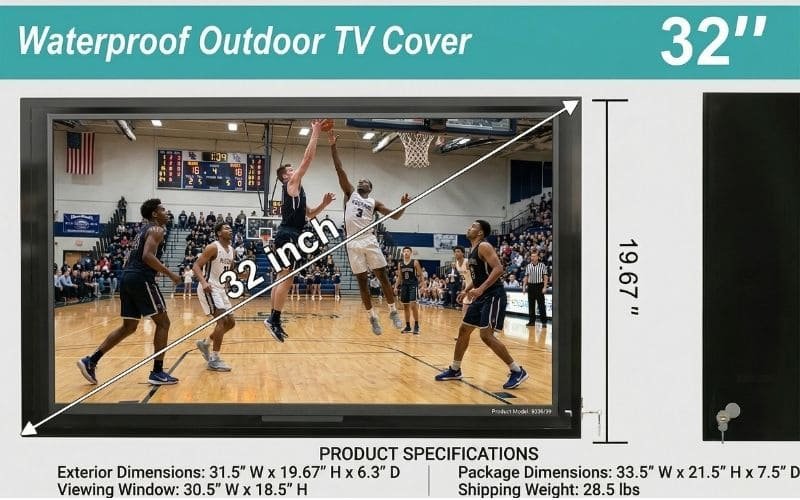

28-32″ Enclosures: The Compact Communicator
Ideal for tight architectural spaces, wayfinding, and compact signage. The 28-32″ TV box provides robust protection for smaller screens while utilizing a 2-fan active ventilation system to maintain a stable internal micro-climate.
The smallest tier in our protective lineup is explicitly designed for environments where physical space is at an absolute premium, yet digital communication is essential.
- Display Pairing & Ergonomics: At a close viewing distance of 3 to 6 feet, screen brightness matters more than 4K resolution. When pairing a display with this compact case, integrators should select high-contrast commercial monitors (700+ nits) rather than cheap consumer TVs. Small screens have less surface area to punch through ambient daylight, making backlight intensity critical.
- Commercial & Residential Applications: Commercially, this size is the gold standard for QSR (Quick Service Restaurant) drive-thru menu boards. It fits perfectly on standard 4×4 steel posts without violating local zoning laws regarding oversized signage. Residentially, it is an excellent choice for compact apartment balconies or mounted above an outdoor grilling station where a massive screen would physically interfere with the cooking area.
- Thermal Management & Structural Installation: A common amateur mistake is assuming smaller enclosures don’t overheat. In reality, smaller monitors feature densely packed logic boards that generate concentrated heat within a highly confined internal air volume. To prevent thermal throttling, this case utilizes a dual-fan (2 fans) cooling system that cycles the entire internal air volume every few seconds. Installation relies on a 100x100mm or 200x100mm VESA pattern, making it perfectly compatible with lightweight, single-stud articulating arms for shaded corner mounting.

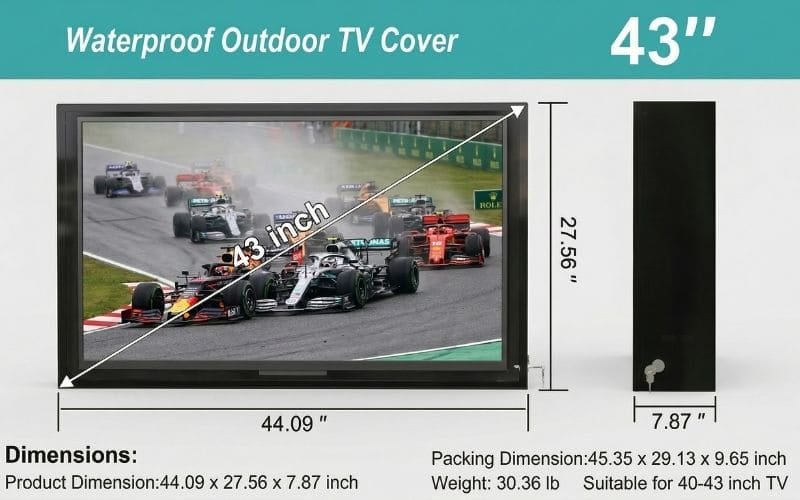

40-43″ Enclosures: The Standard Workhorse
The most versatile size for standard residential patios and moderate commercial deployments. It balances affordability with excellent viewing angles, supported by a 2-fan cooling architecture and standard VESA compatibility.
The 40-43″ protective display cabinet serves as the industry standard for entry-level outdoor setups, hitting a “Goldilocks” sweet spot between screen visibility and architectural footprint.
- Display Pairing & Ergonomics: A 43-inch screen is universally recognized as the entry point for true 4K UHD outdoor viewing. The optimal viewing distance ranges from 5 to 8 feet. Because 42″ and 43″ panels are globally ubiquitous, buyers have a vast array of affordable displays to choose from. For shaded patios, standard LED panels suffice; for partial sun, entry-level QLEDs provide the necessary color punch.
- Commercial & Residential Applications: In the commercial sector, the 43-inch box excels in small sports bar patios or as standalone digital promotional boards outside retail storefronts. Residentially, it delivers a significant entertainment upgrade for a backyard deck without violating strict HOA (Homeowner Association) aesthetic rules that often prohibit massive outdoor installations.
- Thermal Management & Structural Installation: This size provides a crucial 1.5 to 2 inches of internal depth clearance behind modern ultra-thin TVs. This gap is vital for routing heavy-duty outdoor HDMI cables and securely velcroing streaming media players (like Roku Ultra or Apple TV 4K) directly inside the sealed box. Heat is stabilized by our standard 2-fan active exhaust system. Installers should utilize standard 200x200mm VESA mounts and anchor directly into a wood stud or masonry—never rely on drywall toggles for outdoor setups.

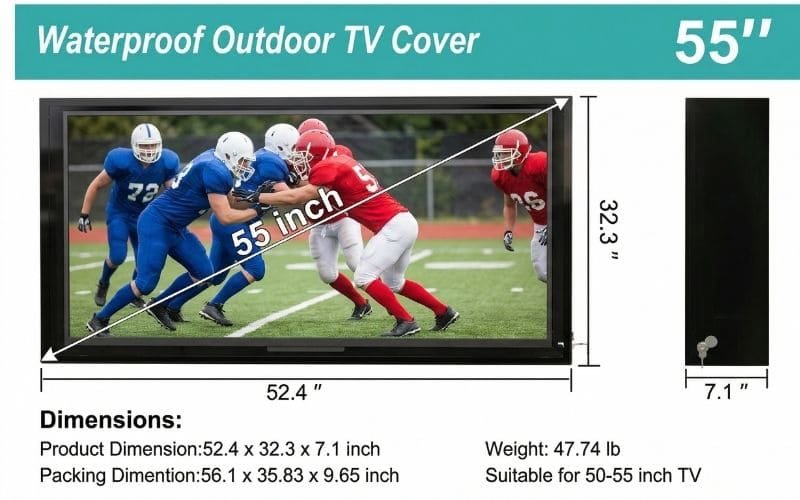

50-55″ Enclosures: The Entertainment Sweet Spot (LED Enabled)
Our most popular size category, featuring integrated LED backlighting for immersive nighttime viewing. Perfectly sized for primary outdoor living spaces (7-10 feet viewing distance) and actively cooled by a precise 2-fan system.
The 50-55″ IP65 display case represents the perfect intersection of cinematic screen size, manageable installation weight, and premium aesthetic features. Because the 55-inch format is the most manufactured TV size globally, this enclosure offers the highest versatility.
- Display Pairing & Ergonomics: When upgrading to the 55″ class, viewers expect a cinematic experience at a 7-10 foot distance. Buyers frequently pair this enclosure with high-nit Mini-LED displays, which provide the intense local dimming needed to combat indirect sunlight during afternoon sports broadcasts.
- The LED Bias Lighting Advantage: Starting at this tier, Outvion integrates a dynamic LED ambient backlight system. For industry professionals, this is known as “bias lighting.” By projecting a soft glow against the mounting wall, it reduces the extreme contrast between the bright TV and the dark night. This prevents the viewer’s pupils from constantly dilating and contracting, significantly reducing eye fatigue during long movie nights or extended commercial events.
- Thermal Management & Structural Installation: Larger power supplies generate more radiant heat. The dual-fan (2 fans) active exhaust system ensures that high-brightness commercial displays operate efficiently without premature capacitor degradation. At this scale, single-stud mounting becomes risky. Installers must use a mount capable of bridging two 16-inch on-center wood studs to distribute the cantilevered weight (TV + Enclosure) safely and prevent the wall from bowing over time.

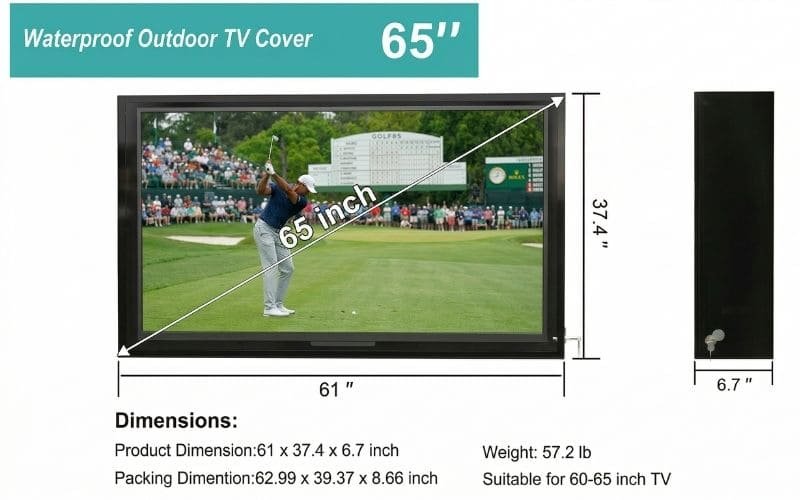

60-65″ Enclosures: The High-Impact Display (LED Enabled)
Designed for immersive sports viewing and large commercial patios. It features LED ambient lighting and follows the current public 2-fan configuration used across 28–60″ models to manage internal thermal loads.
When you move into the 60-65″ category, you are transitioning into large-format, high-impact visual territory that demands rigorous structural planning and an understanding of spatial dynamics.
- Display Pairing & Ergonomics: A 65-inch screen commands the patio. With an optimal viewing distance of 10-15 feet, it allows larger groups to comfortably watch without crowding. For outdoor applications at this size, experts recommend selecting IPS (In-Plane Switching) display panels. IPS technology provides much wider viewing angles than standard VA panels, ensuring guests sitting on the far edges of a beer garden or outdoor sectional don’t experience washed-out colors.
- Commercial & Residential Applications: Commercially, this is the preferred size for golf club hospitality suites and large restaurant patios. The LED backlighting elevates the commercial ambiance, allowing venues to sync the backlight color to a specific sports team’s colors. Residentially, the 65-inch box is the cornerstone of a dedicated outdoor home theater.
- Thermal Management & Structural Installation: To manage the internal environment, the 60–65″ follows the current public 2-fan configuration. However, the most critical factor at this size is wind-load. A 65-inch cabinet presents roughly 15 square feet of surface area, acting exactly like a sail during severe storms. Installations must utilize heavy-duty lag bolts (minimum 5/16″ x 3″) anchored deeply into solid structural beams or use heavy-duty wedge anchors in concrete.

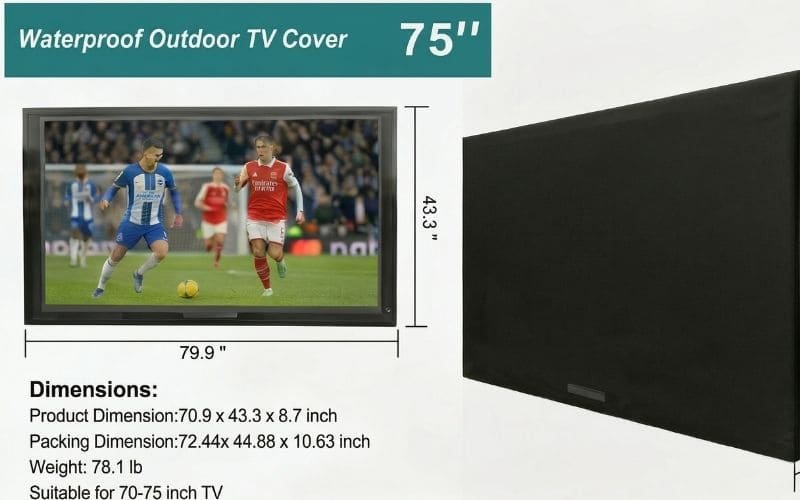

70-75″ Enclosures: The Premium Experience (LED Enabled)
A flagship size for luxury estates and premium commercial venues. Equipped with LED backlighting and a high-volume 4-fan cooling array, requiring dedicated structural mounting hardware and wind-load considerations.
The 70-75″ outdoor TV case is an architectural statement piece. It commands absolute attention and dominates the visual space of any outdoor venue, providing an uncompromising cinematic experience.
- Display Pairing & Ergonomics: At 75 inches, the display is the undeniable focal point. The optimal viewing distance extends from 15 to 20 feet. Buyers typically pair this massive enclosure with premium, ultra-high-brightness commercial displays (often exceeding 1500 nits) designed to cut through intense daytime glare. The sheer size of the panel ensures that sports scores and fine ticker details are legible from across a large outdoor venue.
- Commercial & Residential Applications: This enclosure size is exclusively designed for premium deployments: luxury residential pool houses, outdoor community amphitheaters, and high-end hotel pool decks.
- Thermal Management & Structural Installation: At 75 inches, solar loading is the primary enemy. The massive black polycarbonate surface absorbs intense IR heat from direct sunlight. To combat this thermal gain, the high-volume 4-fan array is non-negotiable. It creates a high-velocity airflow tunnel that strips heat away from the logic boards. Structurally, say goodbye to standard articulating arms. The torsion shear force generated by pulling a 75-inch protected TV away from the wall will compromise standard mounts. Fixed or heavy-duty tilt mounting is highly preferred to ensure hardware safety.

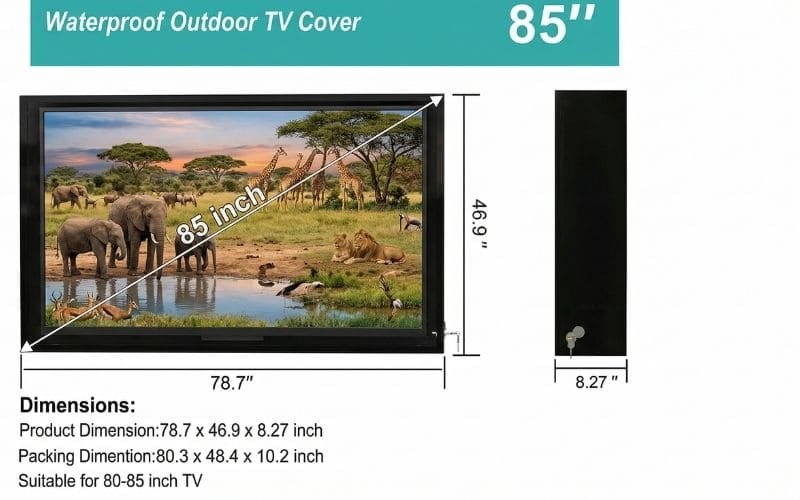

80-85″ Enclosures: The Stadium Scale
Engineered for massive crowd visibility, this enclosure relies on a rigid structural steel backplane and a 4-fan system to protect ultra-large displays in commercial environments.
The 80-85″ category crosses the threshold into stadium-scale digital signage and ultra-luxury custom integrations. At this scale, the tv cabinet is a major piece of architectural infrastructure.
- Display Pairing & Ergonomics: An 85-inch display is designed for mass visibility from 20 to 30+ feet away. These enclosures are almost exclusively paired with commercial-grade digital signage panels capable of running 24/7. The pixel density at 4K resolution on an 85-inch screen remains incredibly sharp, ensuring advertising content or transit schedules are displayed with pristine clarity.
- Commercial & Residential Applications: Optimal deployment scenarios include outdoor sports arenas, massive public transit concourses, university campus courtyards, and theme park queue lines. In the residential market, the 85-inch cabinet is used to create a true drive-in movie theater experience in sprawling backyard estates.
- Thermal Management & Structural Installation: The physical rigidity of the case is paramount. A standard polymer chassis would buckle at this size. Therefore, the housing is heavily reinforced with an internal structural steel backplane to prevent the cabinet from flexing or bowing under its own weight. It utilizes our robust 4-fan cooling configuration to manage the massive heat generated by an 85-inch power supply. Installation requires a multi-person crew or mechanical lifts, anchoring directly to load-bearing masonry walls or structural steel I-beams.
Special Large-Format / Custom Inquiry Sizes
Purpose-built for the absolute largest commercial displays on the market. These project-based custom sizes (including 98″ formats) feature specialized reinforced chassis to protect massive architectural screens.
Very few manufacturers globally possess the engineering capability, material tooling, and structural expertise required to protect ultra-large format displays. Outvion delivers this extreme scale strictly on a project-inquiry basis.
- Display Pairing & Ergonomics: When dealing with screens 98 inches and above, the deployment is entirely custom. These panels are utilized as monumental displays where viewing distances exceed 50 feet. Pairing displays at this size requires close coordination with commercial AV integrators to ensure the chosen panel’s brightness, thermal output, and bezel dimensions match the enclosure parameters perfectly.
- Commercial Applications: Housing a 98-inch screen is an undertaking reserved for flagship commercial projects: high-profile retail building facades, massive outdoor digital billboards, and central transit command centers. These are environments where equipment failure is unacceptable and physical presence is everything.
- Engineering & Structural Customization: Housing a screen of this magnitude requires specialized structural engineering. Polycarbonate naturally bows over a 2-meter span due to gravity and thermal expansion. Therefore, the transparent Covestro polycarbonate front shield must be manufactured with increased gauge thickness and potential internal bracing to prevent inward bowing or vibration over such a massive span. Ventilation systems are often custom-matched to the specific deployment environment, and freight requires specialized flatbed shipping rather than standard LTL pallets.
VESA & Structural Mounting Matrix
| Enclosure Size Tier | Typical VESA Patterns Supported | Preferred Mount Type | Wall Structure Requirement |
| 28-43″ | 100×100 to 400×400 | Articulating or Tilt | Single Wood Stud / CMU |
| 50-65″ | 400×400 to 600×400 | Heavy-Duty Articulating / Tilt | Dual Wood Stud (16″) / CMU |
| 70-85″ | 600×400 to 800×600 | Fixed / Heavy-Duty Tilt | Dual Stud (24″) / Steel I-Beam |
Material Science: The Covestro Polycarbonate Advantagetage
All Outvion enclosures are constructed utilizing premium black polymer bodies and optical-grade transparent polycarbonate shields using Covestro polycarbonate, with Covestro being the company formed from Bayer MaterialScience.
A protective TV cabinet is only as reliable as the materials used to construct it. At Outvion, we refuse to compromise on polymer quality, ensuring your investment is protected by top-tier engineering plastics.
- Optical Polycarbonate Front Shields: The clear front viewing shield of every Outvion box is manufactured using Covestro polycarbonate, with Covestro being the company formed from Bayer MaterialScience. This optical-grade polycarbonate is substantially more impact-resistant than standard display glass, helping your screen survive stray baseballs, hail, and high-traffic environmental hazards.
- UV Stability: Inferior plastics haze and turn brittle after sun exposure. The polycarbonate we utilize is UV-treated, ensuring long-term optical clarity without yellowing, thereby preserving the vibrant colors of your display.
- IP65 Protection: The main body of the case is constructed from a heavy-duty black polymer. This provides a sleek aesthetic that blends into architectural designs while forming an IP65-rated sealed enclosure under proper installation, offering dust-tight sealing and water-jet resistance for all internal components.
Global Fulfillment & Flexible Logistics
Outvion supports a highly flexible, globally scalable logistics network, utilizing dedicated overseas warehouses and sea-freight solutions to serve both retail consumers and commercial buyers.
Whether you need a single 43-inch case for your backyard or a dozen 65-inch cabinets for a restaurant rollout, Outvion’s logistics network is designed for extreme agility.
Single-Unit and Urgent Orders: Express Courier or Local Warehouse Fulfillment
For residential clients, urgent commercial timelines, or single-unit purchases, we leverage major international express couriers (DHL, FedEx, UPS) and our network of dedicated warehouses in the US, Germany, and the UK. This ensures your TV cabinet is dispatched quickly and delivered directly to your door with reliable tracking, minimizing lead times for standard inventory.
Small-Batch Commercial Orders: Sea Freight + Local Dispatch / DDP
For B2B clients and integrators ordering a small batch (e.g., 3 to 15 units), shipping entirely by air becomes cost-prohibitive. Outvion offers flexible DDP (Delivered Duty Paid) or LCL (Less than Container Load) sea-freight solutions. We safely palletize the enclosures, ship them via ocean freight, clear customs on your behalf, and utilize local logistics partners to dispatch the batch directly to your facility or installation site.
Global Logistics & Fulfillment Matrix
| Order Type / Scale | Primary Fulfillment Method | Typical Delivery Speed | Ideal Customer Profile |
| Single Unit (In-Stock) | Local US/EU Warehouse Dispatch | Fast (3-7 Days) | Residential, Urgent Commercial |
| Single Unit (Global) | International Express Courier | Moderate (7-12 Days) | International Retail Buyers |
| Small-Batch (3-15 Units) | Sea Freight (LCL) + Local Dispatch | Scheduled (25-40 Days) | System Integrators, Restaurant Chains |
Enclosure Sizing & Compatibility FAQ
1. How do I know if my specific TV model will fit inside the box?
You must compare the exact external physical dimensions (Width x Height x Depth) of your television against the maximum internal dimensions listed on our specific enclosure product pages. Do not rely solely on the advertised diagonal screen size, as bezel thickness varies between brands.
2. Can I install a smaller TV in a larger enclosure so I can upgrade later?
In many cases, a smaller TV can be installed in a larger enclosure if the internal mounting range, viewing alignment, and cable routing still work correctly; always verify the exact external TV dimensions and VESA pattern first.
3. Does the sealed cabinet muffle the sound of the TV?
Because the enclosure is designed to resist water ingress, the TV’s internal rear-firing speakers will be muffled. To achieve optimal outdoor audio, we highly recommend connecting an external outdoor-rated soundbar and mounting it directly below the display case.
4. How is the LED ambient backlight powered on the enabled models?
The integrated LED backlight system utilizes a standard USB connection. It can be conveniently plugged directly into the USB port on the back of your television (so it turns on and off synchronously with the TV), or it can be plugged into an independent USB power adapter.
